Complete Product Information
| Biomass pellet machine | |||||

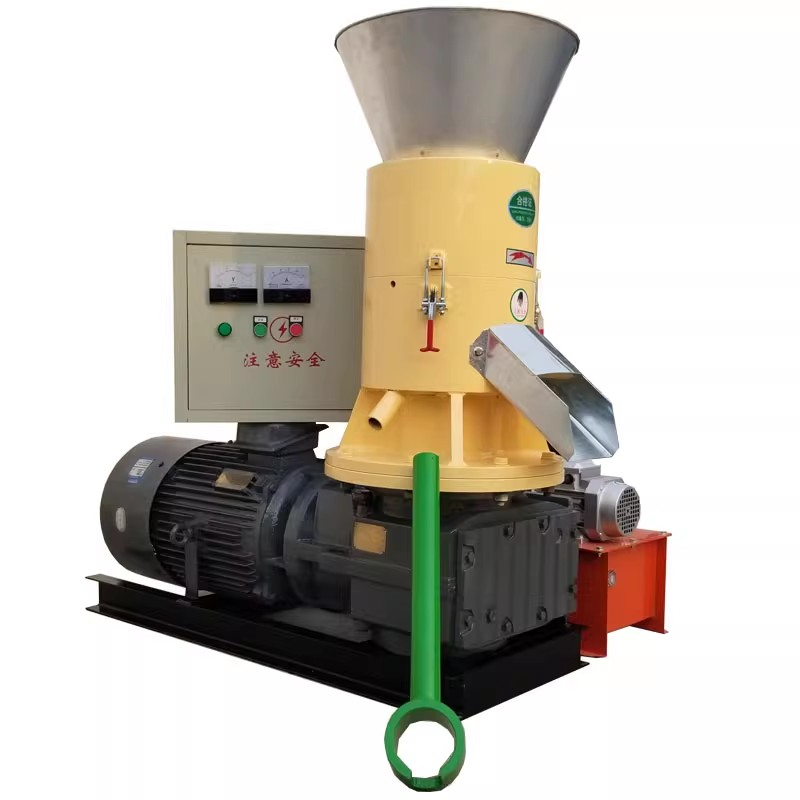

| Introduction to biomass pellet machine | The biomass pellet machine mainly uses wood chips, wood powder, wood bran, sawdust, shavings, bamboo chips, bark, etc. as raw materials, and processes the raw materials into rod-shaped pellets through processes such as crushing, drying, shaping (granulation), and cooling. The formed pellet fuel is a kind of biomass energy that can replace raw coal, fuel oil, liquefied gas, etc., and is widely used in power plants, gasifiers, heating, etc. | ||||
| Working principle | The material is formed by the interaction principle of extrusion force and friction between the pressure wheel and the die. There is no need to add any additives or binders to the material during processing. Materials such as straw contain specific cellulose and lignin. Lignin is the structural monomer in the material and is a phenylpropanoid-type polymer compound. It has the function of strengthening cell walls and binding cellulose. Lignin is amorphous, and its main part is insoluble in any solvent at room temperature. It has no melting point, but has a softening point. When the temperature reaches a specific value, the lignin softens and the cohesive force increases. Under the action of a specific pressure, the cellulose molecular groups are dislocated, deformed, and extended. The adjacent biomass particles inside are meshed with each other, reassembled, and pressed into shape. Raw material collection → raw material crushing → raw material drying → mechanical granulation and molding → mechanical cooling → bagging and sales. Depending on the harvest period of crops, raw materials must be stored in large quantities in time and then crushed and formed. Be careful not to bag immediately when forming. Due to the principle of thermal expansion and contraction, wait for 40 minutes to cool down before bagging for transportation. |
||||
| Biomass pellet machine uses | The biomass pellet machine is a pellet fuel molding machine that uses various branches, wood, wood chips, corn straw, rice straw, wood bran, wood powder, sawdust and other agricultural waste as raw materials. The pellets made by this machine can be used in fireplaces, boilers, and biomass power plants. | ||||
| Advantages of biomass pellet machine | With my country’s integrated management of energy and environment, straw fuel (i.e. biofuel) uses solid waste from crops such as corn stalks, wheat straw, rice straw, peanut shells, corn cobs, cotton stalks, soybean stalks, weeds, branches, leaves, sawdust, bark and other solid waste as raw materials. After crushing, pressurizing, densifying, and shaping, it becomes small rod-shaped solid particle fuel. Pellet fuel is made by extruding wood chips, straw and other raw materials using pressure rollers and ring dies under normal temperature conditions. The density of the raw materials is generally about 0.6-0.8, and the density of the formed particles is greater than 1.1. It is extremely convenient to transport and store. At the same time, its combustion performance is greatly improved, reducing human dependence on petrochemical energy and atmospheric emissions. | ||||
| model | Output (t/h) | Power (KW) | Processing specifications (mm) | Weight(T) | Dimensions (mm) |
| BY-450 | 0.8-1.2 | 75 | 4—12 | 4.8 | 2300*1000*1780 |
| BY-560 | 1-1.5 | 90 | 4—12 | 5.8 | 2600*1300*2300 |
| BY-680 | 1.5-2.5 | 160 | 4—12 | 6.5 | 2900*1300*2400 |
| BY-850 | 2—3 | 220 | 4—12 | 8.5 | 3750*1650*3250 |
| BY-880 | 3—4 | 315 | 4—12 | 12.6 | 4300*1900*3600 |
Product Gallery
