| Drum slicer mobile |
| Introduction to drum slicer |
Drum chipper is a traditional product. Over the years, it has been widely used by domestic and foreign merchants for its superior product performance, high quality, and high cost performance. Drum chipper is a special equipment for preparing high-quality wood chips. It is suitable for paper mills, particleboard factories, fiberboard factories, wood chip production bases, and wood chip export bases. It can cut logs, small-diameter wood, etc. into high-quality industrial wood chips with uniform length, smooth incision, and uniform thickness. It can also cut branches, boards, etc. The main raw materials cut by the drum chipper are small-diameter wood, wood harvesting, and processing residues (such as branches, branches, boards, laths, log cores, waste veneers, waste wood, etc.). It can also be used to cut non-wood raw materials (such as sugar cane, reeds, moso bamboo, etc.). After cutting, the raw materials become small wood chips of certain specifications, which can be used as raw materials for particleboard, medium density board, fiberboard and other paper-making industries, and can also be used as fuel. It has a wide range of applications, diversified raw materials, good wood chip quality, safety and reliability, simple and convenient operation, and high production efficiency. |
| How the drum slicer works |

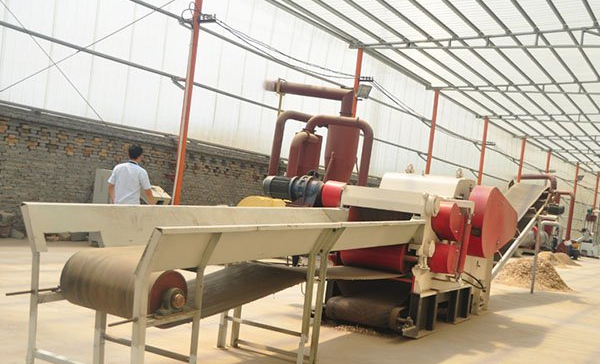

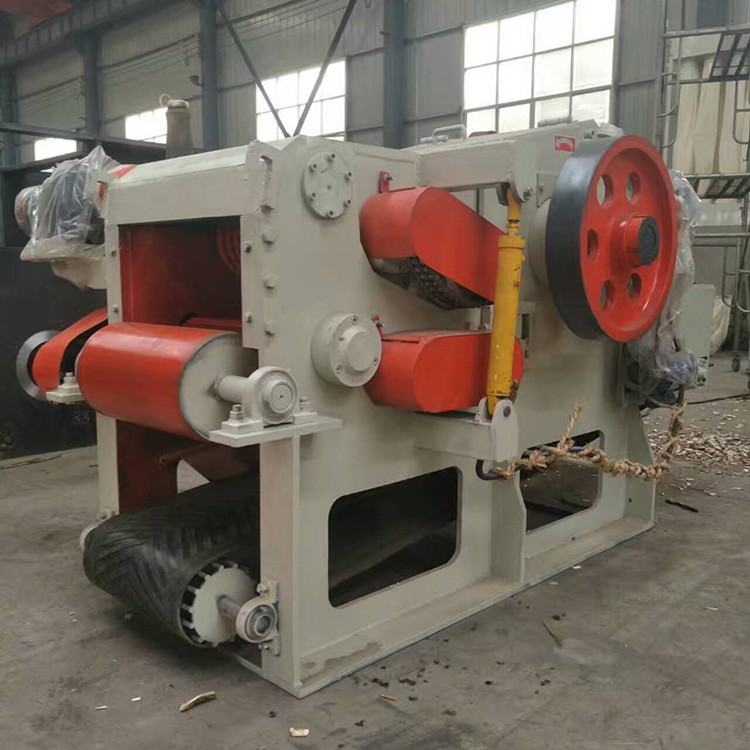

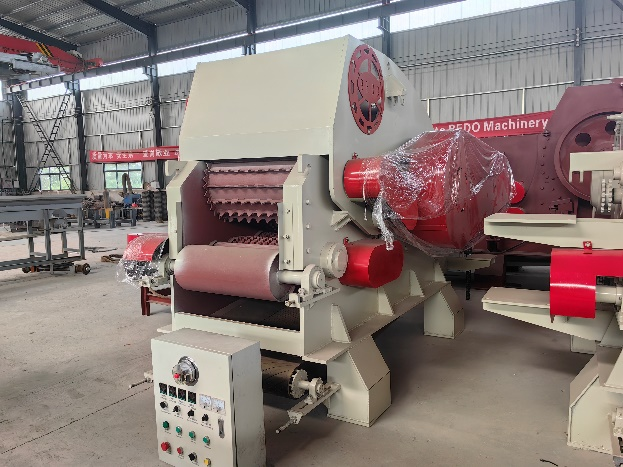

The drum chipper consists of the body, knife roller, upper and lower feeding rollers, conveyor belt, hydraulic system and other parts. The machine body is welded with high-strength steel plates and is the supporting foundation of the entire machine. Install the flying knife on the knife roller, and use professional flying knife bolts to fix the flying knife on the knife roller through the pressure block. According to the different thickness of the raw materials to be cut, the upper feeding roller assembly can float up and down within the range with the help of the hydraulic system. The cut qualified pieces will fall through the screen holes and be discharged from the bottom. Large pieces will be cut in the machine. |
| Performance characteristics |

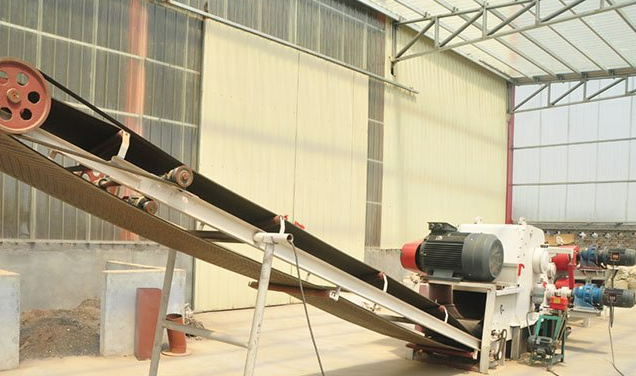

1. Install a fully automatic feeding conveyor belt, which makes it convenient to feed in and out, simple to operate and save labor. |
| 2. Enlarge the feeding port, and the wood of large and small sizes can be fed easily, and it is not easy to pop out when broken, so the materials can be discharged with confidence. |

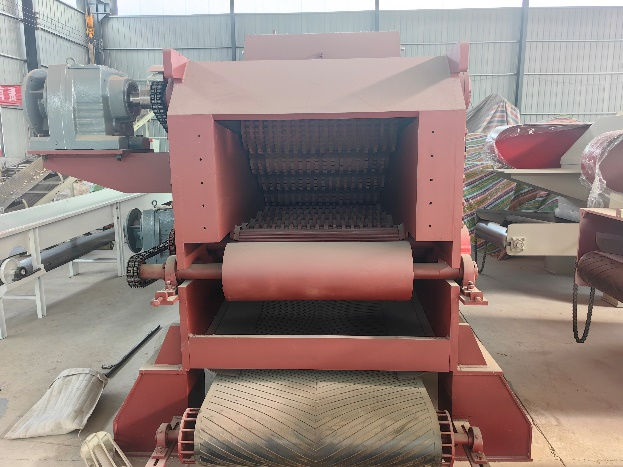

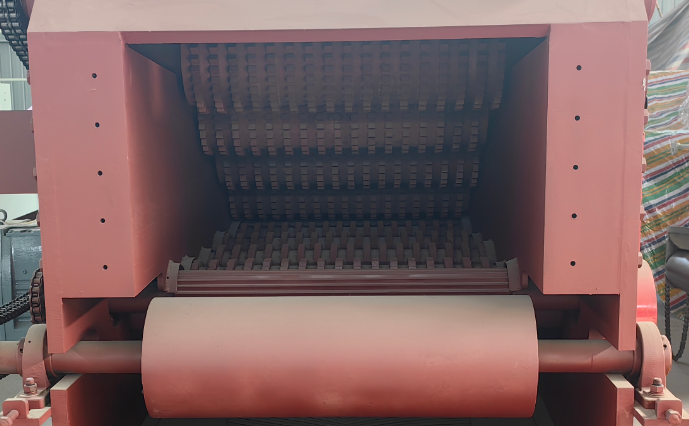

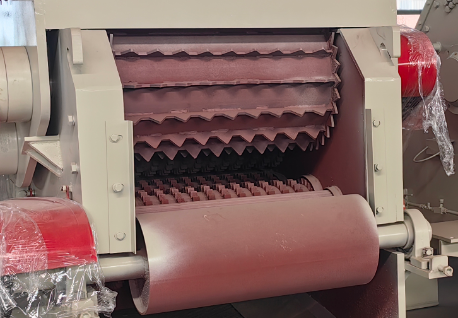

| 3. The feeding rollers are arranged staggered with zigzag outline to improve work efficiency. |
| model |
| Drum wood chipper model |
215 |
216 |
2168 |
218 |
218D |
2110 |
2113/8A |
| Imported material size (mm) |
160*400 |
230*500 |
280*700 |
280*700 |
280*750 |
330*1050 |
400*700 |
| Knife roller diameter (mm) |
500 |
650 |
650 |
800 |
800 |
1000 |
1300 |
| Number of throwing knives (number) |
2 |
2 |
3 |
2 |
2 |
2×2 |
3×4 |
| Knife roller speed (rev) |
730 |
590 |
590 |
650 |
650 |
550 |
420 440 |
| Maximum diameter of processed raw materials (mm) |
Bark Crushed |
120 |
260 |
160 |
160 |
190 |
230 |
| Wood chip length (mm) |
≤50 |
30 22 |
30 |
30 22 |
30 |
30 |
28 25 |
| Production capacity (actual area) (m³/h) |
8-16m³/h |
10m³/h |
10-15m³/h |
15-20m³/h |
38m³/h |
75m³/h |
34 60-70m³/h |
| Main motor power (kw) |
45 |
55 |
75 |
110 |
132 |
220 |
200-250 |
| Feeding roller motor power (kw) |
2×2.2 |
2×3 |
1×3 |
2×4 |
2×5.5 |
2×7.5 |
2×7.5 |
| Oil pump motor power (kw) |
1.1 |
1.5 |
1.5 |
1.5 |
1.5 |
3 |
3 |
| Weight (kg) |
2900 |
4300 |
5600 |
7000 |
8000 |
12500 |
11840 |
| Overall dimensions (mm) |
2200*1700*1300 |
2600*2000*1700 |
2600*2400*1700 |
3000*2500*1700 |
3000*2550*1700 |
2800*2799*1479 |
3670*2517*2050 |
| Drum wood chipper model |
215 |
216 |
218 |
| Imported material size (mm) |
160*400 |
230*500 |
280*700 |
| Knife roller diameter (mm) |
500 |
650 |
800 |
| Number of throwing knives (number) |
2 |
2 |
2 |
| Knife roller speed (rev) |
730 |
590 |
650 |
| Maximum diameter of processed raw materials (mm) |
Bark Crushed |
120 |
160 |
| Wood chip length (mm) |
≤50 |
30 22 |
30 22 |
| Production capacity (actual area) (m³/h) |
8-16m³/h |
10m³/h |
15-20m³/h |
| Main motor power (kw) |
45 |
55 |
110 |
| Feeding roller motor power (kw) |
2×2.2 |
2×3 |
2×4 |
| Oil pump motor power (kw) |
1.1 |
1.5 |
1.5 |
| Weight (kg) |
2900 |
4300 |
7000 |
| Overall dimensions (mm) |
2200*1700*1300 |
2600*2000*1700 |
3000*2500*1700 |
