| wood crusher | |

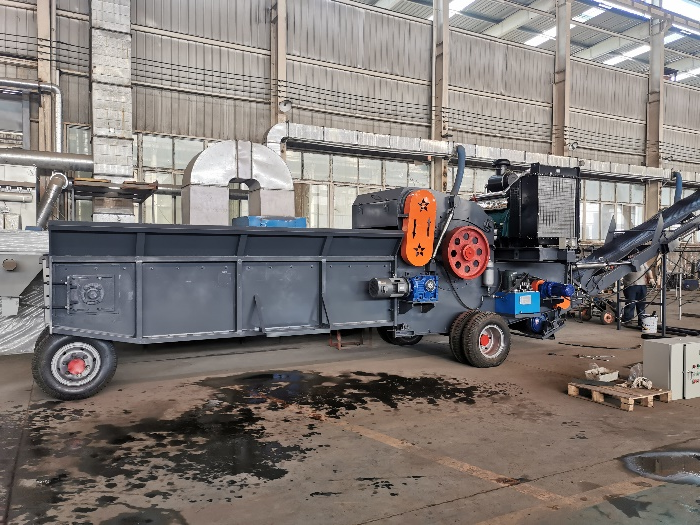

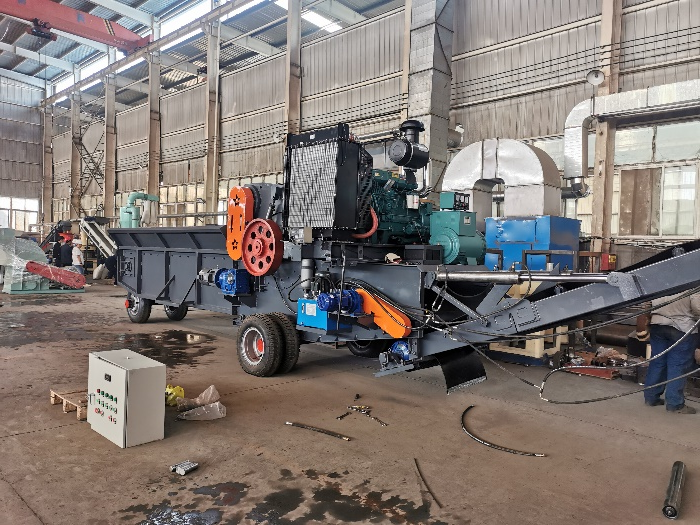

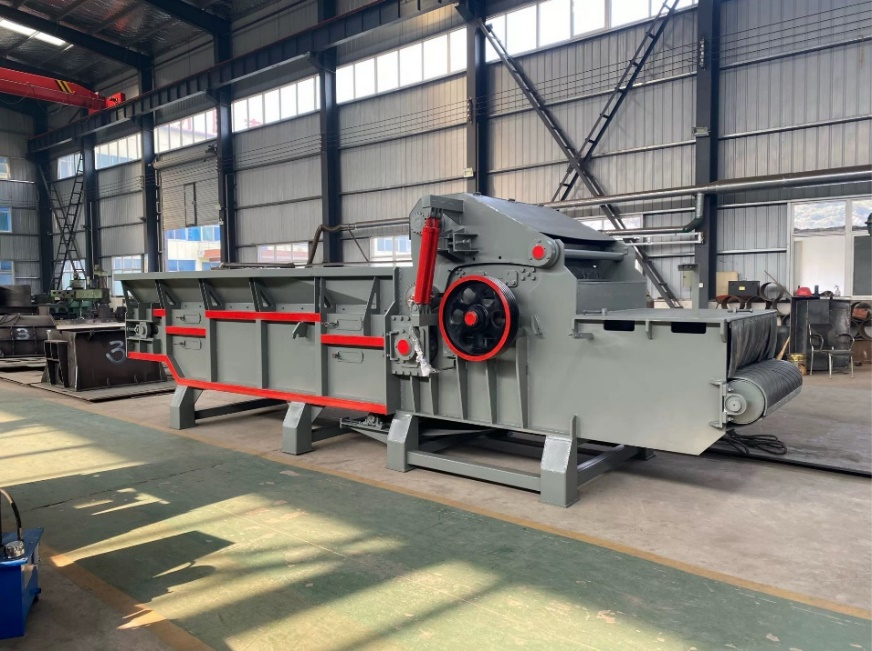

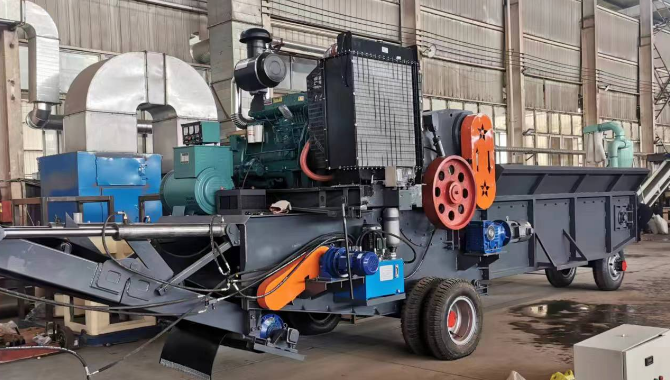

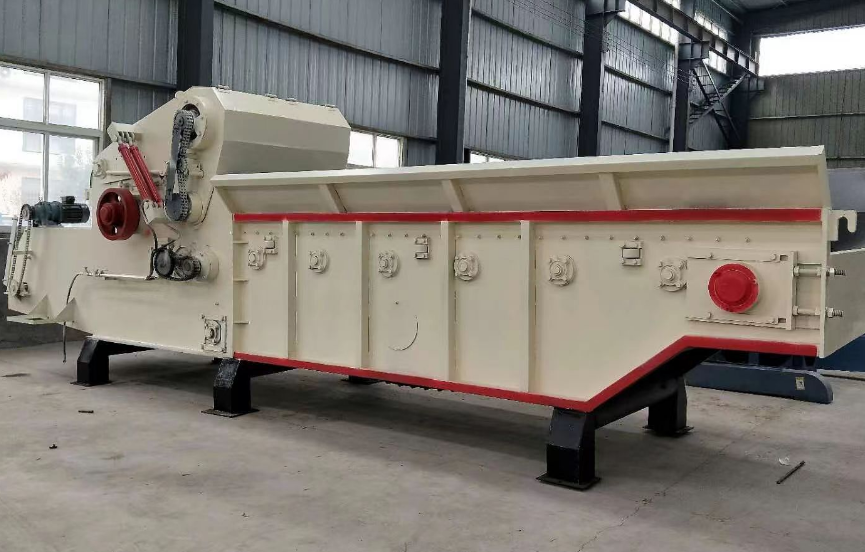

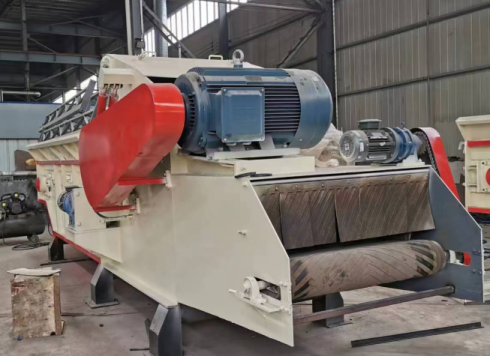

| Introduction to wood crusher | The biomass comprehensive crusher adopts the form of chain plate (belt) transportation. The long chain plate length mainly uses a grab cart to load a large amount of material at one time. The raw materials only need to be placed on the chain plate conveyor and transported to the feed roller in the front section of the host. After being crushed by the feed roller, it is transported to the crushing cavity of the equipment. The main crushing device in the crushing cavity is a knife installed The rotor is driven by a hammer or a hammer. The rotor rotates at high speed driven by a motor or diesel. When it encounters the materials transported to the crushing cavity through the feed roller, the running rotor will cut, tear and crush the materials. The crushed materials that meet the production requirements will be discharged through the screen, and the materials that do not meet the requirements will be crushed twice in the crushing cavity until they meet the requirements. In addition, it is also a necessary mechanical equipment in landscaping work. It does not require foundation operation, and the equipment can be operated as soon as it lands. It has powerful functions, high output and high efficiency. This machine makes these waste wood have recycling value, and is a good equipment for turning waste into treasure and reusing resources. |
| Working principle of wood crusher | The working principle of the wood crusher is to complete the wood crushing operation by relying on impact energy. The motor drives the rotor to rotate at high speed, and the wood enters the comprehensive crusher cavity evenly. The high-speed rotating hammer head impacts, shears and tears the wood, causing the wood to be broken. At the same time, the weight of the wood itself The force causes the wood to rush from the high-speed rotating hammer head to the baffle and sieve bars in the frame body. There is a sieve plate at the lower part of the rotor. The particles in the crushed wood that are smaller than the sieve hole size are discharged through the sieve plate, while the wood larger than the sieve hole size is retained on the sieve plate to continue to be hit and ground by the hammer. |

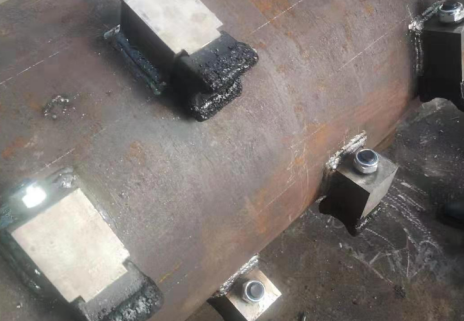

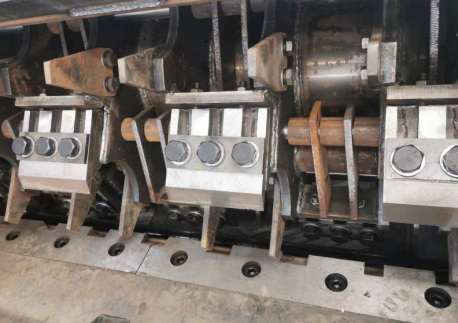

| Performance features: | 1. Rotor structure: blade type, hammer type, combination knife, etc. Different rotor structures are used according to different materials. |
| 2. The supporting power can be motor power or diesel engine power. | |
| 3. Flexible operation and can be equipped with various customized solutions such as mobile tires | |

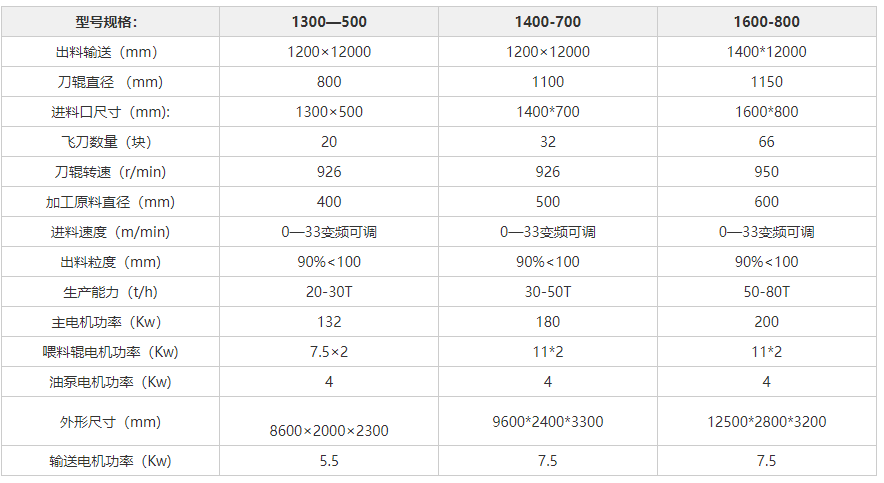

| model |
